New borescope magnifies visual inspections for instruments

Aug. 6, 2021

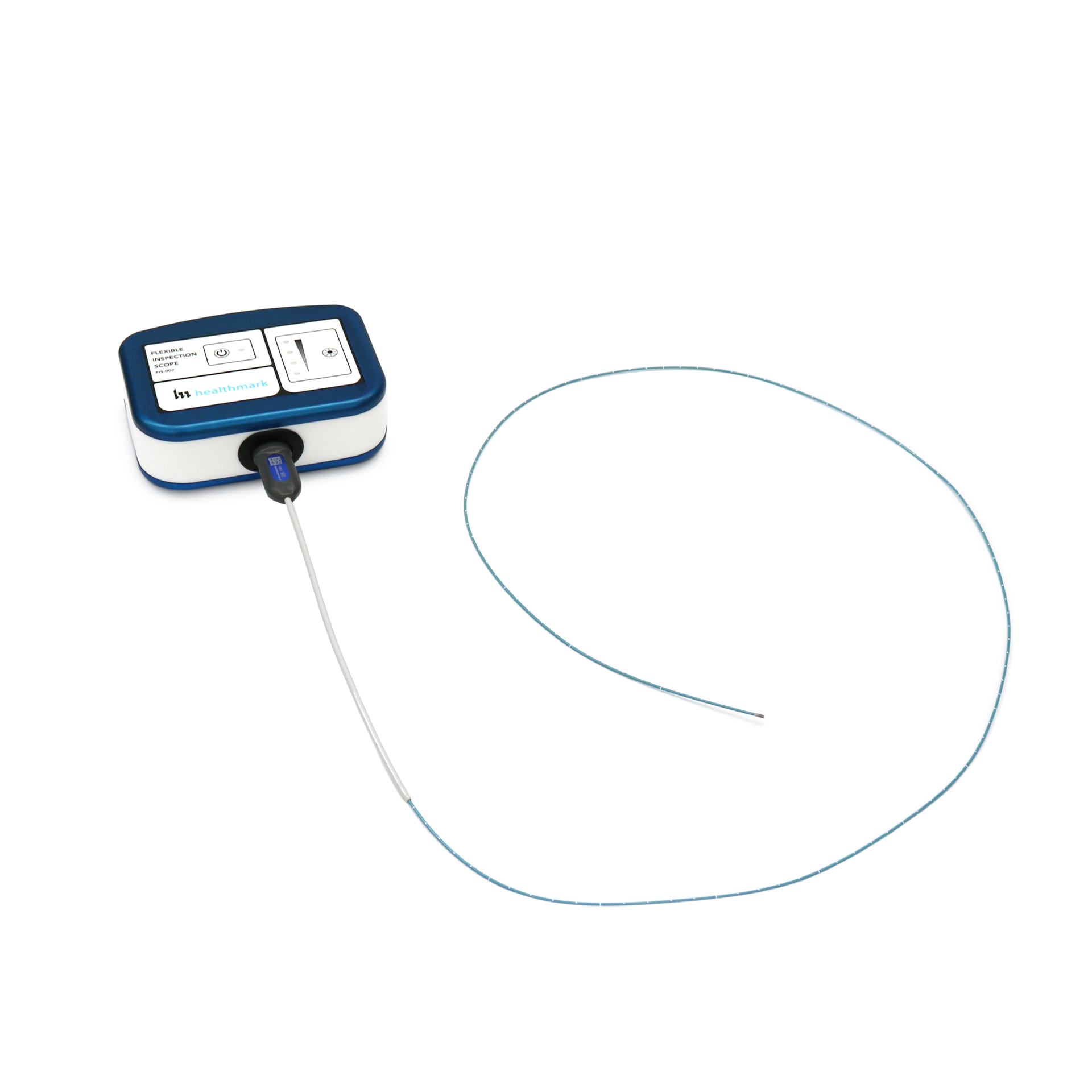

Healthmark Industries has introduced the FIS-007 to its ProSys Optical Inspection product line. It is a borescope designed to visually inspect internal channels of potentially soiled or damaged items with enhanced light, vision and magnification.

It also offers users the option to document, with photos and videos, the lumens and crevices not visible to the unaided eye. The FIS-007 features a modular design with interchangeable flexible inspection scope attachments available in diameters of 1.06mm and 1.9mm. These scopes have a working length of 110cm and attach to a 13.3W x 9.9L x 4.7H cm control box, allowing for light level adjustments, image capture, and video recording.

The 1.06mm scope is designed to inspect internal channels of 1.1mm in diameter or larger, and the 1.9mm scope is designed to inspect internal channels of 2.0mm in diameter or larger.

Healthmark announcement
